og050x012x0110-N
8721548502413
Alle houdkrachten zijn gemeten onder ideale omstandigheden en kunnen in de praktijk afwijken.

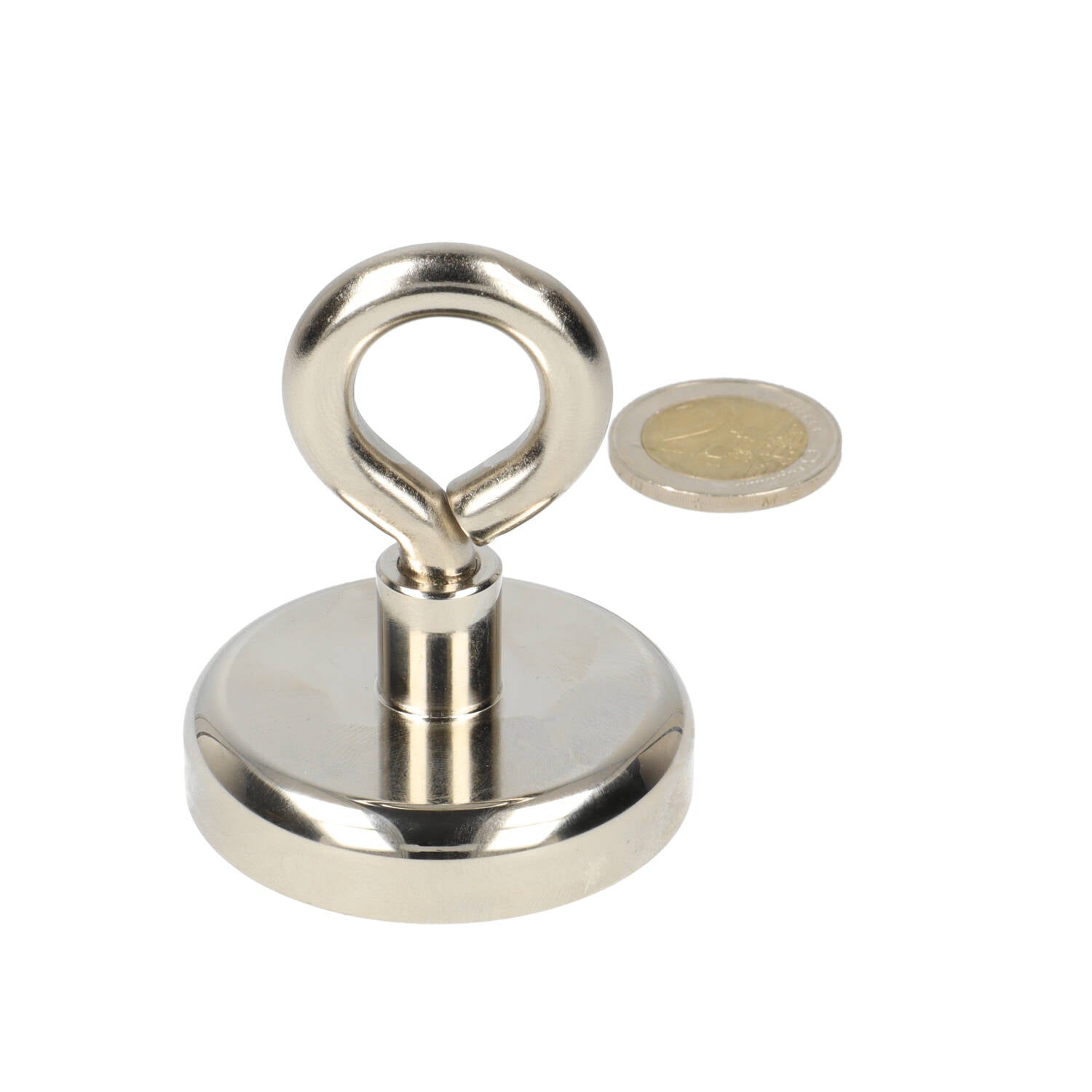

Eyebolt magnet 50 x 12 x 11 mm – Neodymium N40 magnet in steel housing
This 50mm diameter eyebolt magnet features a powerful Neodymium N40 magnet and is housed in a robust steel housing. Designed for situations requiring high pulling force, it's ideal for use in warehouses, workshops, industrial applications, and construction sites. The sturdy eyebolt allows for easy attachment of cables, tools, or signs.
Eyebolt magnet 50 x 12 x 11 mm
This eyebolt magnet measures 50mm (diameter) x 12mm (height) and features an 11mm eyebolt, making it easy to attach to a hook, chain, or other mounting system. Made of neodymium, the most powerful permanent magnet material, this magnet offers strong magnetic force for hanging heavier objects or creating secure magnetic connections. This eyebolt magnet is ideal for industrial applications, workshops, warehouses, and various hobby projects.
Features:
Dimensions : 50mm (diameter) x 12mm (height)
Eyebolt length : 11mm for easy attachment to hook or chain
Material : Neodymium for powerful magnetic force
Coating : Nickel plated for extra protection against corrosion and wear
Holding force : Strong magnetic force for reliable adhesion (depending on the surface)
Applications : Perfect for industrial applications, hanging objects, and creating magnetic hanging systems in workshops or commercial environments
This eyebolt magnet offers a robust solution for hanging and securing heavy objects, with the powerful neodymium magnet ensuring a reliable and durable magnetic connection.
Volgens de door de fabrikant verstrekte conformiteitsverklaringen voldoet dit product aan de actuele Europese RoHS-richtlijn en REACH-verordening.

Neodymium magnets are very powerful and can bounce off each other and/or iron objects at high speed. The force increases as the magnet gets larger, which also increases the risk of breakage. Two of the larger magnets in our range are powerful enough to break fingers or at least cause a few large blisters.
Therefore, wear work gloves and keep magnets away from children. Also, keep Neodymium (NdFeB) magnets at a safe distance from people with pacemakers. This also applies to electronic devices and payment cards.
Neodymium magnets are still the most powerful magnets available today. Our super-strong magnets also remain magnetic virtually indefinitely, provided they are not exposed to the maximum operating temperature or are used with opposite poles.
The letters and numbers in the material coding have the following meaning: The N stands for Neodymium, the subsequent digits indicate the maximum magnetic energy expressed in MgOe. If there are no further letters after this, the magnet can be used up to 80 degrees Celsius.
If there are still letters behind it, it can reach a higher temperature.
We indicate adhesive force in grams or kilograms because this appeals to more people than Newton. The indicated force is measured perpendicular to the magnet. The adhesive force is the force required to pull a smooth, flat steel object (ST37) at least 10 millimeters thick from the magnet in question.
This force quickly diminishes when, for example, there's a gap or layer of paint between the magnet and the object. Even half a millimeter can reduce the force by half. A steel alloy or a rough surface also significantly reduces the holding force.
As mentioned, the direction of the adhesive force is perpendicular to the magnet, but the shear force is much smaller and also depends on the friction between the magnet and the object.
€16,27
